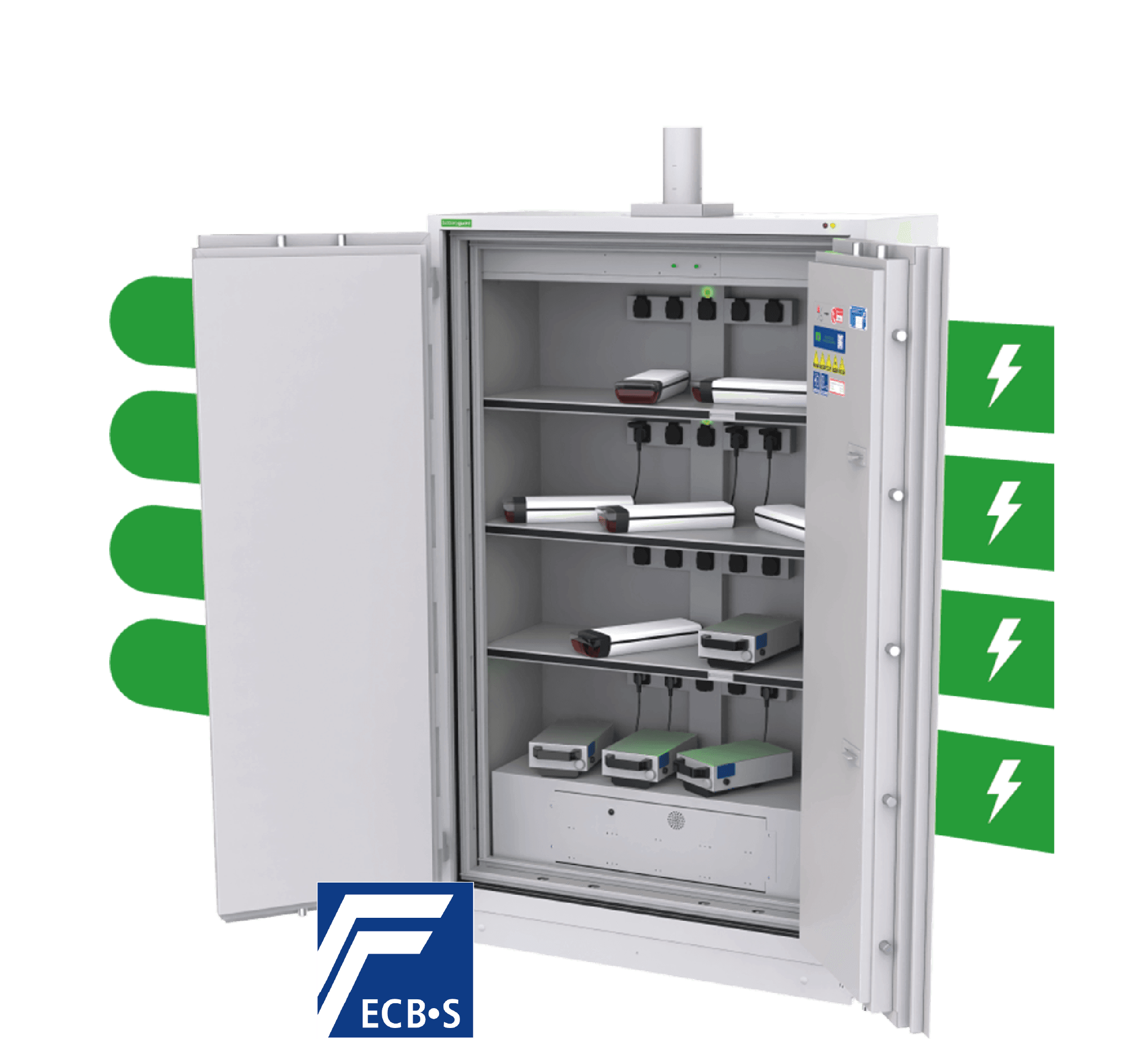

Batteryguard

XL-20 battery safe

continuous charging, 400V

  • 20 charging points for lithium-ion batteries

  • 400V CEE plug

  • ElectrIQ charging system, prevents overloading

  • 4 charging levels operating at the same time

  • Certified by ECB-S according to VDMA 24994

  • Accepted by all insurers

  • CE marking, complies with EU regulations

Article numberBATG2004-EU
External dimensions2050 × 1250 × 585 mm
Internal dimensions1760 x 1110 x 390 mm
Weight710 kg
Number of sockets20
Capacity6.000 Wh
Sales price*€ 8.750,-

Charging large batteries with 400V: always ready to use

Do you work with large batteries, such as those for electric pallet trucks, e-scooters or professional power tools? And do you need charged batteries available throughout the day? Then you need both speed and safety while charging. The Batteryguard XL-20 400V battery safe with continuous charging makes this possible.

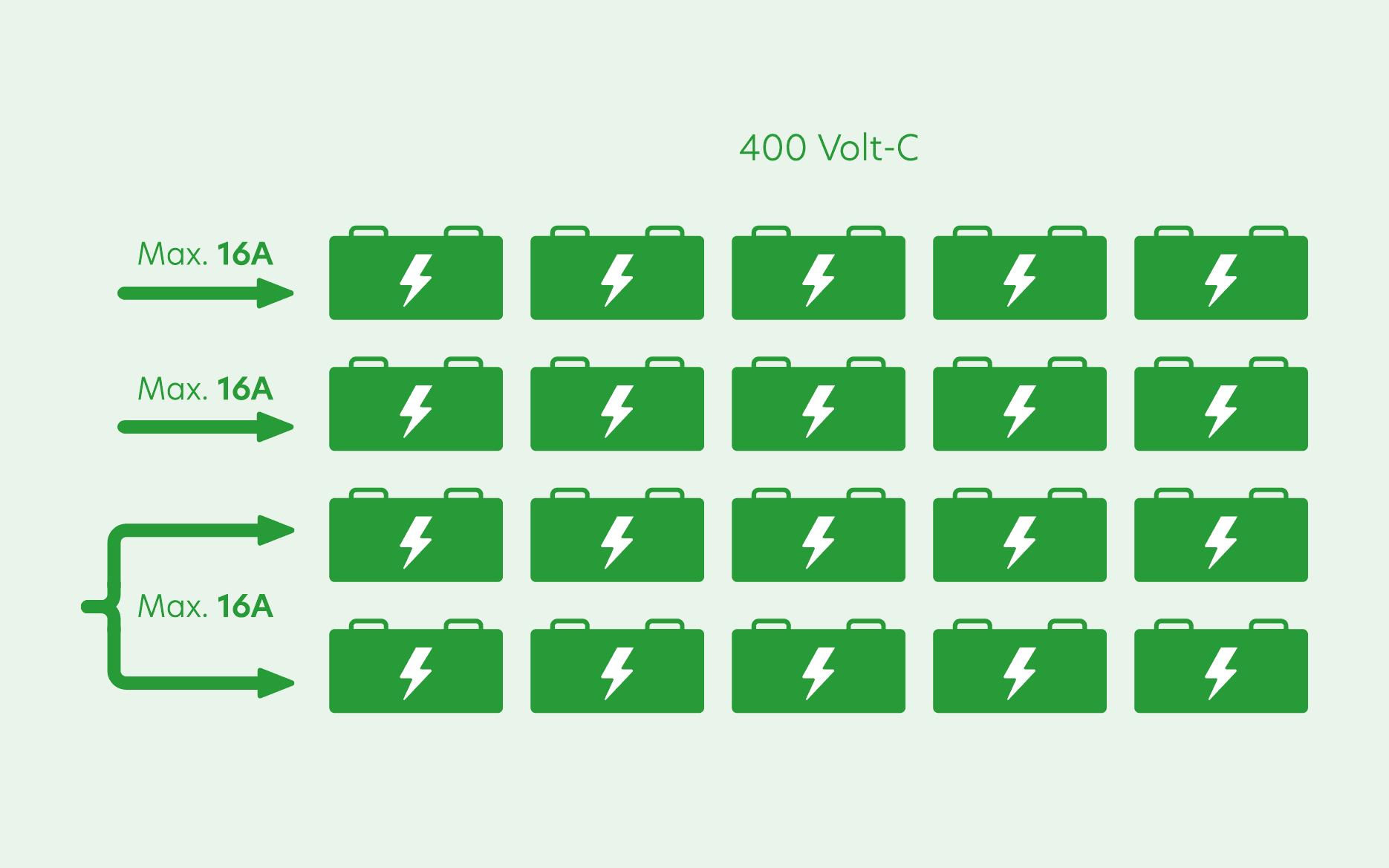

Schematic representation of continuous charging at 400V

How the ElectrIQ charging system works

Thanks to the ElectrIQ charging system, you can charge on four levels simultaneously you can charge on four levels simultaneously. This allows you to recharge batteries throughout the day and ensures that everything is fully charged at the start of your next working day. The ElectrIQ charging system distributes the power and prevents excessive consumption. Read more under Here’s how to calculate the correct distribution

  • Levels 1 and 2 charge simultaneously, each with a maximum of 16A​

  • Levels 3 and 4 share 16 amperes – convenient for smaller batteries​

  • Charging batteries throughout the day

At pizza delivery company Domino’s, delivery bikes and scooters need to operate with fully charged batteries throughout the day. That’s why they use the Batteryguard battery safe: a solution that charges continuously, ensuring enough charged batteries are available during every shift.

Too many connected? The safe automatically shuts down safely

If you accidentally connect too many heavy batteries at once, the safe intervenes before anything goes wrong. The system temporarily shuts down, but the fuses in your fuse box remain intact. After a brief reset, you can resume charging immediately.​

Charging many batteries simultaneously? Here’s how to calculate the correct distribution

This safe operates on three-phase power and has four charging levels:

  • Top two levels: each with a maximum of 16 amperes, suitable for heavy chargers such as for pallet trucks or e-scooters
  • Bottom two levels: share 16 amperes together, ideal for smaller chargers such as tools or e-bikes



Tip

A pallet truck charger of 8A can be easily combined with another charger of 7A on the same level. As long as you stay under 16A, you’re fine. For the lighter levels, sum all chargers up to a total of 16A distributed.

Determining the best solution for your company together

Do you work with different types of batteries and chargers? Then you want to ensure that you utilise the charging system properly. We understand that it may sound technical, but we’re happy to clarify with examples from your practice. Request a free consultation or contact us directly.

Expandable with intelligent extras

The Batteryguard XL can be easily expanded with intelligent extras that suit your work practice. Consider pull-out drawers, docking stations, and an electronic code lock on the safe door. Want to know which expansions are possible?

“Batteryguard XL is recommended by insurers.”

Want to know more about battery safe regulations or the risks of battery fires?

Visit our pages on regulations and battery fires.​

Get in touch with us

If you would like to find out more about Batteryguard safes, our product specialists will be happy to help you find the best solution for your situation. Complete the form below and we will get in touch with you!
