Batteryguard

XL-16 battery safe

sequential charging, 230V

  • 16 charging points for lithium-ion batteries

  • 230 V CEE plug, no three-phase power required

  • ElectrIQ sequential charging, prevents overloading

  • 4 charging levels activated in stages

  • Certified by ECB-S according to VDMA 24994

  • Accepted by all insurers

  • CE marked, complies with EU regulations

Article numberBATG2022-EU
External dimensions2050 × 940 × 585 mm
Internal dimensions1760 x 800 x 390 mm
Weight510 kg
Number of sockets16
Capacity6.000 Wh
Sales price*€ 8.190,-

Safely charging many batteries in a spacious battery safe

Do you work with batteries for e-bikes, tools or other electrical equipment and want to charge them safely in one place? The Batteryguard XL-16 battery safe offers 16 charging points on a standard 230 V connection. You don’t need three-phase power and you avoid having separate charging spots scattered around your building.

Supplied as standard with European sockets, and optionally available with sockets for the UK, France or Switzerland.

Who is the Batteryguard XL-16 for?

The XL-16 battery safe is a logical choice if you regularly work with a larger number of batteries and want to charge them centrally. You will recognise yourself in these situations:

  • You use multiple batteries every day for e-bikes or electric power tools
  • You want all chargers and batteries together in one clear charging area
  • You have 230 V available at your charging location and want to charge many batteries at once without three-phase power

If you have a lot of batteries in circulation and want to charge them safely and in an organised way, the Batteryguard XL-16 is a suitable battery safe for your business.

Worry-free charging with ElectrIQ

The Batteryguard XL-16 charges in smart steps thanks to the ElectrIQ charging system. The battery safe starts with one level and first charges all connected batteries on that level. Once those batteries are full, it automatically switches to the next level. This does not happen at fixed times, but is based on the actual charging status of the batteries.

  • One level of batteries charges at a time, up to a maximum of 16 A
  • When the batteries on a level are full, the battery safe automatically switches to the next level
  • During busy periods you always have at least one level of fully charged batteries available

Smart add-ons for your Batteryguard battery safe

The Batteryguard battery safe can easily be expanded with practical options: from docking stations and pull-out shelves to an electronic code lock. Curious which extras will make your charging area safer and more organised? Take a look at the available options.

Safety first

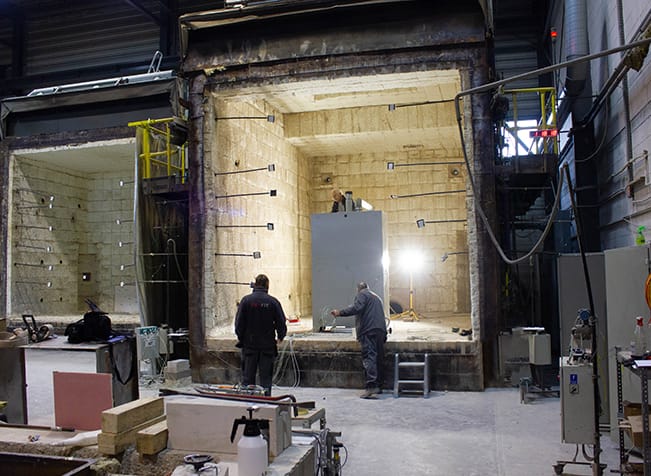

If you charge many batteries in one place, you want to be sure that an incident does not immediately have major consequences for your business. The Batteryguard XL-16 with sequential charging is therefore designed so that a battery fire remains inside the battery safe. This reduces the risk of major fire damage, helps prevent unnecessary downtime and protects staff and visitors.

The XL-16 has been tested according to the VDMA 24994 test requirements and has been awarded the ECB-S certificate on that basis.

Key safety features:

  • Fire- and explosion-resistant battery safe

  • Prepared for smoke extraction

  • Can be connected to your fire alarm system

  • Warning system in case of a fault or if the door is left open

Downloads: key documentation for your insurance adviser

Insurers increasingly ask for clear proof that your batteries are charged and stored safely. With the right documents, you can easily show that you have chosen a tested and certified battery safe according to the regulations.

Do you want to discuss the Batteryguard XL-16 with your safety officer, fire service contact or insurer? The official documents below will help. You can also use them for your risk assessment and when setting up or updating your internal safety procedures.

Support in choosing the right battery safe

No two organisations use batteries in the same way. Not sure whether the Batteryguard XL-16 with sequential charging is the best fit for your business? We are happy to think along with you. In a short conversation, we discuss, among other things:

  • which batteries you use and how many are charged at the same time
  • how often and at what times you charge (during the day, in the evening, in shifts)
  • which 230 V circuits and connections you already have available

Based on this, we give a practical recommendation. Sometimes the XL-16 is exactly the right solution; in other cases, a battery safe with more or fewer charging points is a better match.

Battery storage solution for:

Green spaces

Battery-powered tools used by landscapers and municipalities

Bicycle shops

E-bikes under maintenance and repair at bicycle shops

Home delivery

Electric delivery bikes used by home delivery chains

Holiday parks

E-bikes and choppers at holiday parks, campsites, and hotels

Elektrische pompwagen of palletwagen in magazijn veilig opladen. Batteryguard accukast.

Logistics

Electric pallet trucks and pump trucks in warehouses
